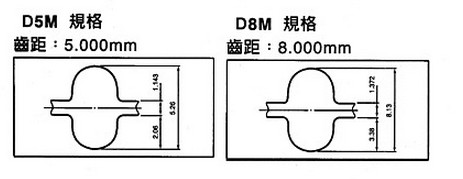

皮帶表示方法：500 -D5M 20
長度mm 規格 寬mm
品牌：G-GATES T-TIMKEN
| 規格 | 長度(mm) | 齒數 | G | T |
|---|---|---|---|---|
| 385-D5M | 385.0 | 77 | • | |
| 400-D5M | 400.0 | 80 | • | |
| 405-D5M | 405.0 | 81 | • | |
| 410-D5M | 410.0 | 82 | • | |
| 420-D5M | 420.0 | 84 | • | |
| 425-D5M | 425.0 | 85 | • | |
| 450-D5M | 450.0 | 90 | • | |
| 460-D5M | 460.0 | 92 | • | |
| 465-D5M | 465.0 | 93 | • | |
| 475-D5M | 475.0 | 95 | • | |
| 480-D5M | 480.0 | 96 | • | |
| 500-D5M | 500.0 | 100 | • | • |
| 505-D5M | 505.0 | 101 | • | |
| 510-D5M | 510.0 | 102 | • | |
| 520-D5M | 520.0 | 104 | • | • |
| 525-D5M | 525.0 | 105 | • | |
| 530-D5M | 530.0 | 106 | • | |
| 535-D5M | 535.0 | 107 | • | |
| 540-D5M | 540.0 | 108 | • | |
| 550-D5M | 550.0 | 110 | • | • |
| 555-D5M | 555.0 | 111 | • | |
| 560-D5M | 560.0 | 112 | • | • |
| 565-D5M | 565.0 | 113 | • | • |
| 570-D5M | 570.0 | 114 | • | |
| 575-D5M | 575.0 | 115 | • | • |
| 580-D5M | 580.0 | 116 | • | • |
| 585-D5M | 585.0 | 117 | • | • |
| 590-D5M | 590.0 | 118 | • | |
| 600-D5M | 600.0 | 120 | • | • |
| 605-D5M | 605.0 | 121 | • | |
| 610-D5M | 610.0 | 122 | • | • |
| 615-D5M | 615.0 | 123 | • | • |
| 620-D5M | 620.0 | 124 | • | |
| 625-D5M | 625.0 | 125 | • | • |
| 630-D5M | 630.0 | 126 | • | |
| 635-D5M | 635.0 | 127 | • | • |
| 640-D5M | 640.0 | 128 | • | • |
| 645-D5M | 645.0 | 129 | • | • |
| 650-D5M | 650.0 | 130 | • | |
| 655-D5M | 655.0 | 131 | • | • |
| 665-D5M | 665.0 | 133 | • | • |
| 670-D5M | 670.0 | 134 | • | • |
| 675-D5M | 675.0 | 135 | • | |
| 680-D5M | 680.0 | 136 | • | |
| 685-D5M | 685.0 | 137 | • | |
| 690-D5M | 690.0 | 138 | • | |
| 695-D5M | 695.0 | 139 | • | • |
| 700-D5M | 700.0 | 140 | • | • |
| 710-D5M | 710.0 | 142 | • | • |
| 715-D5M | 715.0 | 143 | • | |
| 720-D5M | 720.0 | 144 | • | • |
| 725-D5M | 725.0 | 145 | • | |
| 740-D5M | 740.0 | 148 | • | • |
| 745-D5M | 745.0 | 149 | • | |
| 750-D5M | 750.0 | 150 | • | |
| 755-D5M | 755.0 | 151 | • | • |
| 765-D5M | 765.0 | 153 | • | |
| 770-D5M | 770.0 | 154 | • | • |
| 775-D5M | 775.0 | 155 | • | • |
| 780-D5M | 780.0 | 156 | • | |
| 790-D5M | 790.0 | 158 | • | |
| 800-D5M | 800.0 | 160 | • | • |
| 810-D5M | 810.0 | 162 | • | • |
| 825-D5M | 825.0 | 165 | • | |
| 830-D5M | 830.0 | 166 | • | • |
| 835-D5M | 835.0 | 167 | • | |
| 840-D5M | 840.0 | 168 | • | |
| 845-D5M | 845.0 | 169 | • | |
| 850-D5M | 850.0 | 170 | • | • |
| 860-D5M | 860.0 | 172 | • | • |
| 870-D5M | 870.0 | 174 | • | • |
| 890-D5M | 890.0 | 178 | • | • |
| 900-D5M | 900.0 | 180 | • | • |
| 910-D5M | 910.0 | 182 | • | |
| 920-D5M | 920.0 | 184 | • | • |
| 925-D5M | 925.0 | 185 | • | • |
| 930-D5M | 930.0 | 186 | • | |
| 935-D5M | 935.0 | 187 | • | • |
| 940-D5M | 940.0 | 188 | • | • |
| 950-D5M | 950.0 | 190 | • | • |
| 960-D5M | 960.0 | 192 | • | |
| 965-D5M | 965.0 | 193 | • | • |
| 975-D5M | 975.0 | 195 | • | • |
| 980-D5M | 980.0 | 196 | • | |
| 985-D5M | 985.0 | 197 | • | |
| 1000-D5M | 1000.0 | 200 | • | • |
| 1025-D5M | 1025.0 | 205 | • | • |
| 1035-D5M | 1035.0 | 207 | • | |
| 1040-D5M | 1040.0 | 208 | • | |
| 1050-D5M | 1050.0 | 210 | • | • |
| 1100-D5M | 1100.0 | 220 | • | • |
| 1115-D5M | 1115.0 | 223 | • | |
| 1125-D5M | 1125.0 | 225 | • | • |
| 1135-D5M | 1135.0 | 227 | • | • |
| 1145-D5M | 1145.0 | 229 | • | • |
| 1175-D5M | 1175.0 | 235 | • | |
| 1180-D5M | 1180.0 | 236 | • | |
| 1195-D5M | 1195.0 | 239 | • | • |
| 1200-D5M | 1200.0 | 240 | • | • |
| 1210-D5M | 1210.0 | 242 | • | |
| 1225-D5M | 1225.0 | 245 | • | • |
| 1235-D5M | 1235.0 | 247 | • | |
| 1250-D5M | 1250.0 | 250 | • | • |
| 1270-D5M | 1270.0 | 254 | • | • |
| 1290-D5M | 1290.0 | 258 | • | |
| 1295-D5M | 1295.0 | 259 | • | • |
| 1300-D5M | 1300.0 | 260 | • | |
| 1340-D5M | 1340.0 | 268 | • | |
| 1350-D5M | 1350.0 | 270 | • | • |
| 1375-D5M | 1375.0 | 275 | • | • |
| 1380-D5M | 1380.0 | 276 | • | |
| 1400-D5M | 1400.0 | 280 | • | |
| 1410-D5M | 1410.0 | 282 | • | |
| 1420-D5M | 1420.0 | 284 | • | • |
| 1450-D5M | 1450.0 | 290 | • | |
| 1455-D5M | 1455.0 | 291 | • | |
| 1500-D5M | 1500.0 | 300 | • | |
| 1520-D5M | 1520.0 | 304 | • | |
| 1575-D5M | 1575.0 | 315 | • | |
| 1595-D5M | 1595.0 | 319 | • | • |
| 1600-D5M | 1600.0 | 320 | • | |
| 1635-D5M | 1635.0 | 327 | • | |
| 1685-D5M | 1685.0 | 337 | • | • |
| 1690-D5M | 1690.0 | 338 | • | • |
| 1800-D5M | 1800.0 | 360 | • | |
| 1870-D5M | 1870.0 | 374 | • | |
| 1895-D5M | 1895.0 | 379 | • | |
| 1945-D5M | 1945.0 | 389 | • | |
| 2000-D5M | 2000.0 | 400 | • | |
| 2100-D5M | 2100.0 | 420 | • | |
| 2250-D5M | 2250.0 | 450 | • | |
| 2350-D5M | 2350.0 | 470 | • | |
| 2525-D5M | 2525.0 | 505 | • | |
| 2760-D5M | 2760.0 | 552 | • | |
| 3120-D5M | 3120.0 | 624 | • | |
| 3200-D5M | 3200.0 | 640 | • | |
| 3430-D5M | 3430.0 | 686 | • | |
| 3800-D5M | 3800.0 | 760 | • |
模具列表不定期更新，設計前請先聯絡確認
