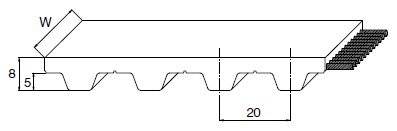

皮帶表示法：25-T20-1500
寬度mm 規格 長度mm
| 規格 | 長度(mm) | 齒數 |
|---|---|---|
| T20 1500 | 1500 | 75 |
| T20 1600 | 1600 | 80 |
| T20 1700 | 1700 | 85 |
| T20 1800 | 1800 | 90 |
| T20 1900 | 1900 | 95 |
| T20 2000 | 2000 | 100 |
| T20 2100 | 2100 | 105 |
| T20 2200 | 2200 | 110 |
| T20 2300 | 2300 | 115 |
| T20 2400 | 2400 | 120 |
| T20 2500 | 2500 | 125 |
| T20 2600 | 2600 | 130 |
| T20 2700 | 2700 | 135 |
| T20 2800 | 2800 | 140 |
| T20 2900 | 2900 | 145 |
| T20 3000 | 3000 | 150 |
| T20 3100 | 3100 | 155 |
| T20 3200 | 3200 | 160 |
| T20 3300 | 3300 | 165 |
| T20 3400 | 3400 | 170 |
| T20 3500 | 3500 | 175 |
| T20 3600 | 3600 | 180 |
| T20 3700 | 3700 | 185 |
| T20 3800 | 3800 | 190 |
| T20 3900 | 3900 | 195 |
| T20 4000 | 4000 | 200 |
| T20 4100 | 4100 | 205 |
| T20 4200 | 4200 | 210 |
| T20 4300 | 4300 | 215 |
| T20 4400 | 4400 | 220 |
| T20 4500 | 4500 | 225 |
| T20 4600 | 4600 | 230 |
| T20 4700 | 4700 | 235 |
| T20 4800 | 4800 | 240 |
| T20 4900 | 4900 | 245 |
| T20 5000 | 5000 | 250 |
| T20 5100 | 5100 | 255 |
| T20 5200 | 5200 | 260 |
| T20 5300 | 5300 | 265 |
| T20 5400 | 5400 | 270 |
| T20 5500 | 5500 | 275 |
| T20 5600 | 5600 | 280 |
| T20 5700 | 5700 | 285 |
| T20 5800 | 5800 | 290 |
| T20 5900 | 5900 | 295 |
| T20 6000 | 6000 | 300 |
| T20 6100 | 6100 | 305 |
| T20 6200 | 6200 | 310 |
| T20 6300 | 6300 | 315 |
| T20 6400 | 6400 | 320 |
| T20 6500 | 6500 | 325 |
| T20 6600 | 6600 | 330 |
| T20 6700 | 6700 | 335 |
| T20 6800 | 6800 | 340 |
| T20 6900 | 6900 | 345 |
| T20 7000 | 7000 | 350 |
| T20 7100 | 7100 | 355 |
| T20 7200 | 7200 | 360 |
| T20 7300 | 7300 | 365 |
| T20 7400 | 7400 | 370 |
| T20 7500 | 7500 | 375 |
| T20 7600 | 7600 | 380 |
| T20 7700 | 7700 | 385 |
| T20 7800 | 7800 | 390 |
| T20 7900 | 7900 | 395 |
| T20 8000 | 8000 | 400 |
| T20 8100 | 8100 | 405 |
| T20 8200 | 8200 | 410 |
| T20 8300 | 8300 | 415 |
| T20 8400 | 8400 | 420 |
| T20 8500 | 8500 | 425 |
| T20 8600 | 8600 | 430 |
| T20 8700 | 8700 | 435 |
| T20 8800 | 8800 | 440 |
| T20 8900 | 8900 | 445 |
| T20 9000 | 9000 | 450 |
| T20 9100 | 9100 | 455 |
| T20 9200 | 9200 | 460 |
| T20 9300 | 9300 | 465 |
| T20 9400 | 9400 | 470 |
| T20 9500 | 9500 | 475 |
| T20 9600 | 9600 | 480 |
| T20 9700 | 9700 | 485 |
| T20 9800 | 9800 | 490 |
| T20 9900 | 9900 | 495 |
| T20 10000 | 10000 | 500 |
| T20 10100 | 10100 | 505 |
| T20 10200 | 10200 | 510 |
| T20 10300 | 10300 | 515 |
| T20 10400 | 10400 | 520 |
| T20 10500 | 10500 | 525 |
| T20 10600 | 10600 | 530 |
| T20 10700 | 10700 | 535 |
| T20 10800 | 10800 | 540 |
| T20 10900 | 10900 | 545 |
| T20 11000 | 11000 | 550 |
| T20 11100 | 11100 | 555 |
| T20 11200 | 11200 | 560 |
| T20 11300 | 11300 | 565 |
| T20 11400 | 11400 | 570 |
| T20 11500 | 11500 | 575 |
| T20 11600 | 11600 | 580 |
| T20 11700 | 11700 | 585 |
| T20 11800 | 11800 | 590 |
| T20 11900 | 11900 | 595 |
| T20 12000 | 12000 | 600 |
| T20 12100 | 12100 | 605 |
| T20 12200 | 12200 | 610 |
| T20 12300 | 12300 | 615 |
| T20 12400 | 12400 | 620 |
| T20 12500 | 12500 | 625 |
| T20 12600 | 12600 | 630 |
| T20 12700 | 12700 | 635 |
| T20 12800 | 12800 | 640 |
| T20 12900 | 12900 | 645 |
| T20 13000 | 13000 | 650 |
| T20 13100 | 13100 | 655 |
| T20 13200 | 13200 | 660 |
| T20 13300 | 13300 | 665 |
| T20 13400 | 13400 | 670 |
| T20 13500 | 13500 | 675 |
| T20 14000 | 14000 | 700 |
| T20 14500 | 14500 | 725 |
| T20 15000 | 15000 | 750 |
| T20 15500 | 15500 | 775 |
| T20 16000 | 16000 | 800 |
| T20 16500 | 16500 | 825 |
| T20 17000 | 17000 | 850 |
| T20 17500 | 17500 | 875 |
| T20 18000 | 18000 | 900 |
| T20 18500 | 18500 | 925 |
| T20 19000 | 19000 | 950 |
| T20 19500 | 19500 | 975 |
模具列表不定期更新，設計前請先聯絡確認
